Handoffs

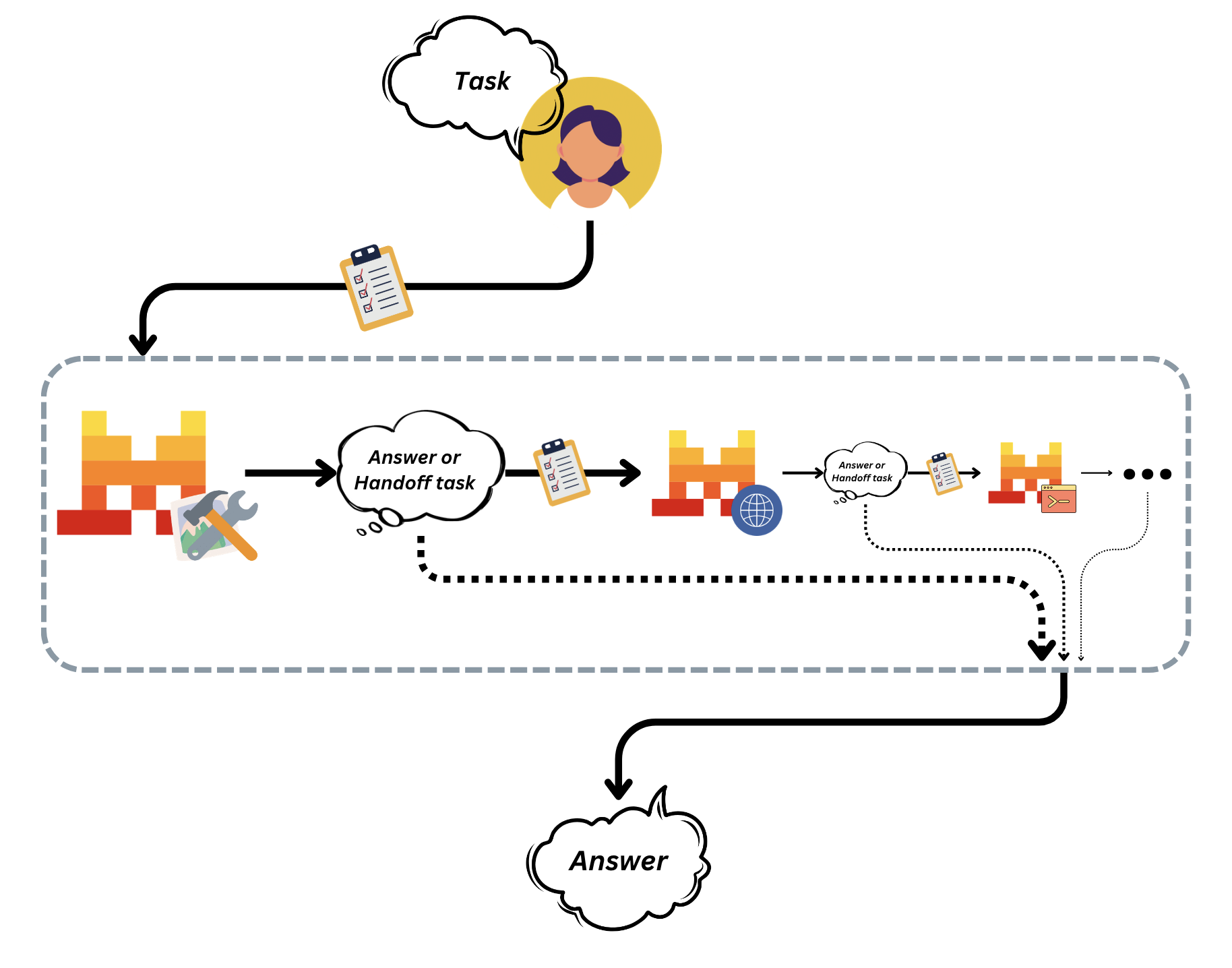

When creating and using Agents, often with access to specific tools, there are moments where it is desired to call other Agents mid-action. To elaborate and engineer workflows for diverse tasks that you may want automated, this ability to give Agents tasks or hand over a conversation to other agents is called Handoffs.

Create an Agentic Workflow

When creating a workflow powered by Handoffs, we first need to create all the Agents that our workflow will use. There is no limit to how many chained Handoffs a workflow can have. You are free to create multiple Agents using diverse tools, models and handoffs, and orchestrate your own workflow using these Agents.

Create Multiple Agents

First things first, let's create diverse Agents with multiple tasks and capabilities.

python
typescript
curl

from mistralai import CompletionArgs, ResponseFormat, JSONSchema
from pydantic import BaseModel

class CalcResult(BaseModel):
    reasoning: str
    result: str

# Create your agents
finance_agent = client.beta.agents.create(
    model="mistral-large-latest",
    description="Agent used to answer financial related requests",
    name="finance-agent",
)
web_search_agent = client.beta.agents.create(
    model="mistral-large-latest",
    description="Agent that can search online for any information if needed",
    name="websearch-agent",
    tools=[{"type": "web_search"}],
)
ecb_interest_rate_agent = client.beta.agents.create(
    model="mistral-large-latest",
    description="Can find the current interest rate of the European central bank",
    name="ecb-interest-rate-agent",
    tools=[
        {
            "type": "function",
            "function": {
                "name": "get_european_central_bank_interest_rate",
                "description": "Retrieve the real interest rate of European central bank.",
                "parameters": {
                    "type": "object",
                    "properties": {
                        "date": {
                            "type": "string",
                        },
                    },
                    "required": [
                        "date",
                    ]
                },
            },
        },
    ],
)
graph_agent = client.beta.agents.create(
    model="mistral-large-latest",
    name="graph-drawing-agent",
    description="Agent used to create graphs using the code interpreter tool.",
    instructions="Use the code interpreter tool when you have to draw a graph.",
    tools=[{"type": "code_interpreter"}]
)
calculator_agent = client.beta.agents.create(
    model="mistral-large-latest",
    name="calculator-agent",
    description="Agent used to make detailed calculations",
    instructions="When doing calculations explain step by step what you are doing.",
    completion_args=CompletionArgs(
          response_format=ResponseFormat(
            type="json_schema",
            json_schema=JSONSchema(
                name="calc_result",
                schema=CalcResult.model_json_schema(),
            )
        )
    )
)

curl --location "https://api.mistral.ai/v1/agents" \
     --header 'Content-Type: application/json' \
     --header 'Accept: application/json' \
     --header "Authorization: Bearer $MISTRAL_API_KEY" \
     --data '{
     "model": "mistral-large-latest",
     "name": "finance-agent",
     "description": "Agent used to answer financial related requests"
  }'

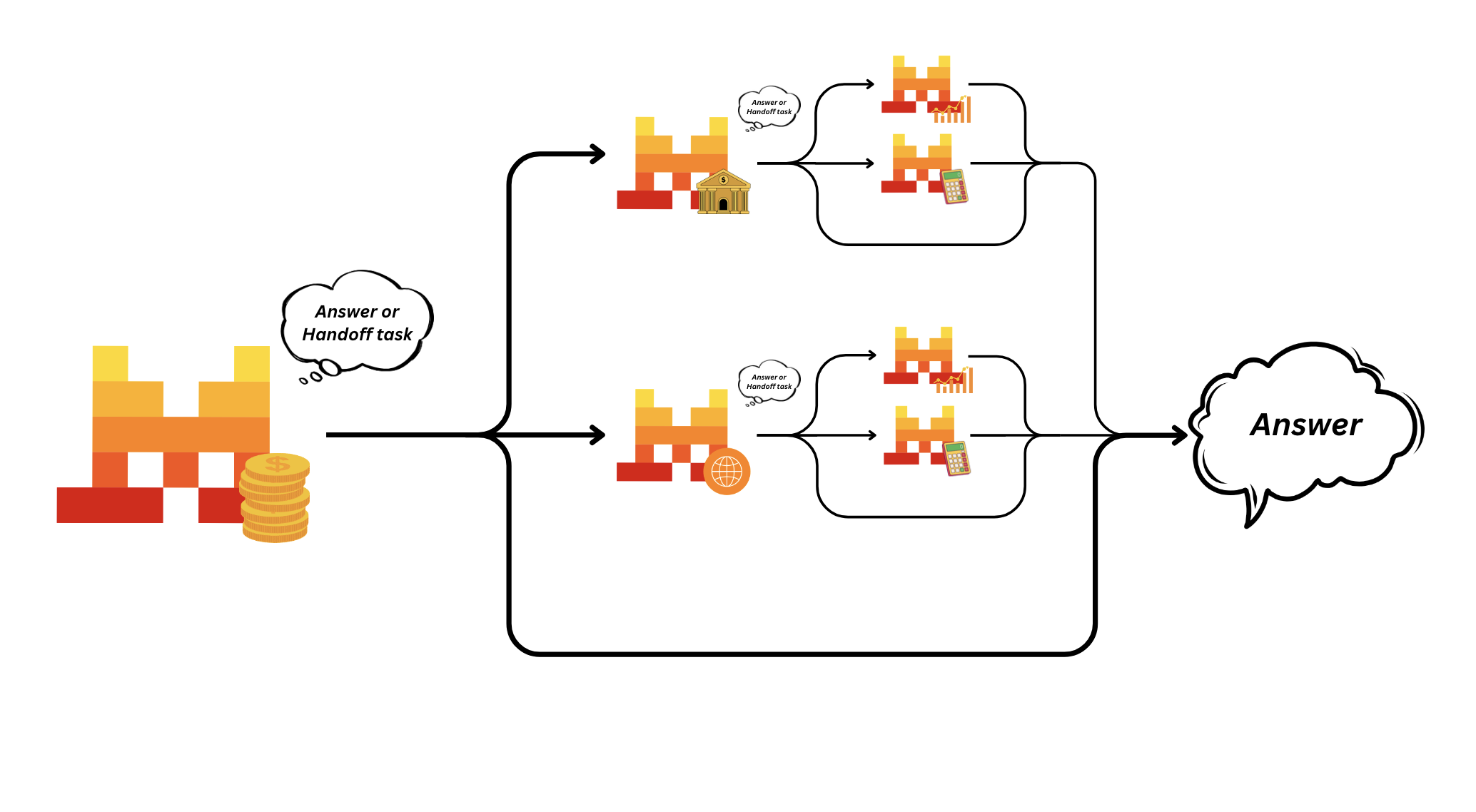

Define Handoffs Responsibilities

Once all our Agents created, we update our previous defined Agents with a list of handoffs available.

python
typescript
curl

# Allow the finance_agent to handoff the conversation to the ecb_interest_rate_agent or web_search_agent
finance_agent = client.beta.agents.update(
    agent_id=finance_agent.id,
    handoffs=[ecb_interest_rate_agent.id, web_search_agent.id]
)

# Allow the ecb_interest_rate_agent to handoff the conversation to the graph_agent or calculator_agent
ecb_interest_rate_agent = client.beta.agents.update(
    agent_id=ecb_interest_rate_agent.id,
    handoffs=[graph_agent.id, calculator_agent.id]
)

# Allow the web_search_agent to handoff the conversation to the graph_agent or calculator_agent
web_search_agent = client.beta.agents.update(
    agent_id=web_search_agent.id,
    handoffs=[graph_agent.id, calculator_agent.id]
)

curl --location "https://api.mistral.ai/v1/agents/<web_search_id>" \
     --header 'Content-Type: application/json' \
     --header 'Accept: application/json' \
     --header "Authorization: Bearer $MISTRAL_API_KEY" \
     --data '{
     "handoffs": ["<graph_agent_id>", "<calculator_agent_id>"]
  }'

How It Works

Our workflow and behavior are defined, now we can run it.

We created 5 agents, some of them have access to built-in tools, and others to local tools like get_european_central_bank_interest_rate.

It is now possible to have a chain of actions by sending a request to the finance_agent.

We also provide the parameter handoff_execution, which currently has two modes: server or client.

server: Runs the handoff as expected internally on our cloud servers; this is the default setting.
client: When a handoff is triggered, a response is provided directly to the user, enabling them to handle the handoff with control.

Let’s trigger two different behaviors as examples:

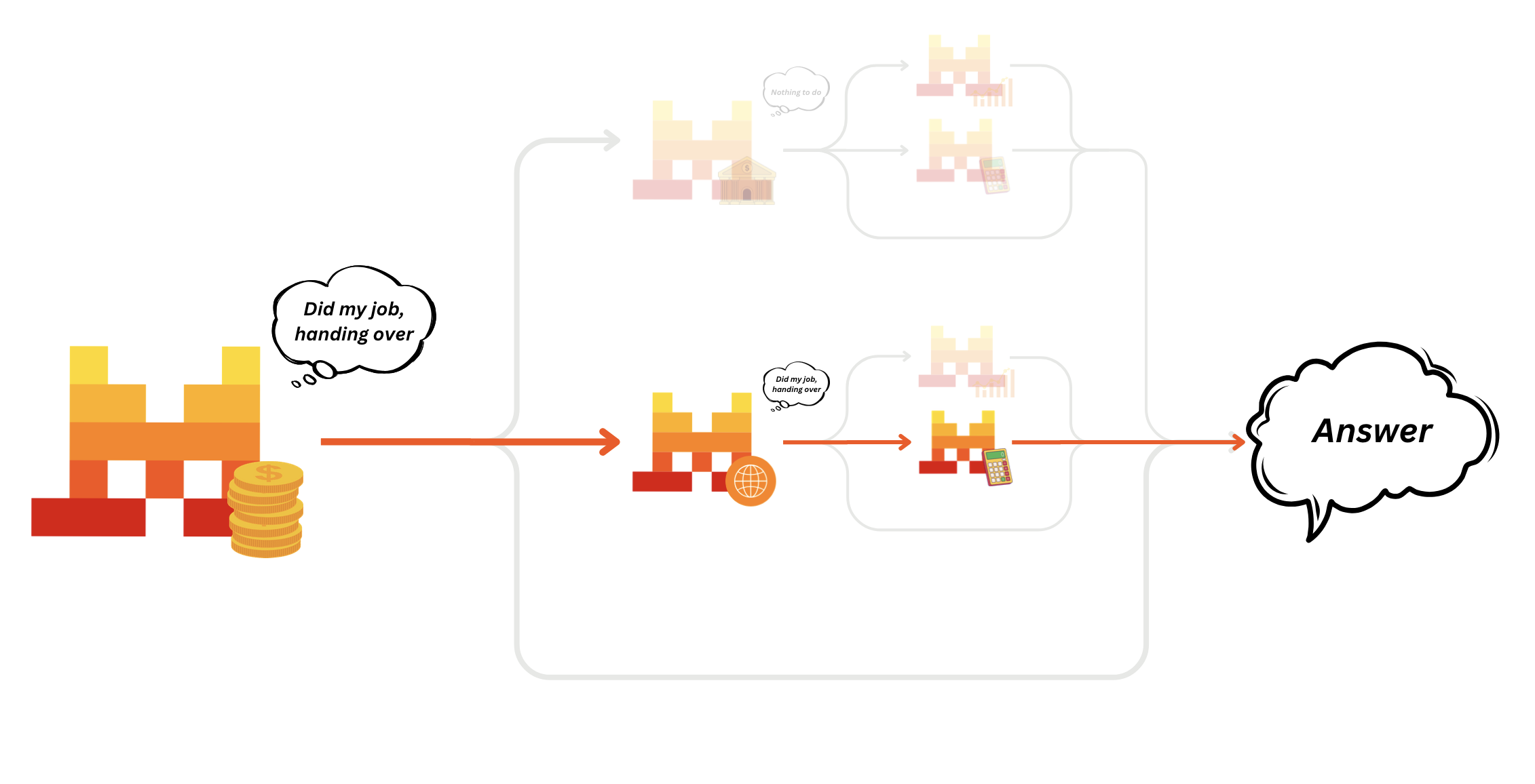

Example A

"Fetch the current US bank interest rate and calculate the compounded effect if investing for the next 10y"

The first example asks for the US central bank interest rate, so we expect to involve the websearch-agent and then to calculate the compounded interest over 10 years. This should use the calculator-agent to do this.

python
typescript
curl

response = client.beta.conversations.start(
    agent_id=finance_agent.id,
    inputs="Fetch the current US bank interest rate and calculate the compounded effect if investing for the next 10y"
)

Parsed Output

Conversation started: conv_067f7fce0aba70728000b32dcb0ac7e5

## Event type: agent.handoff

agent_id='ag_067f7fce04517b60800013b213ff2acb' agent_name='websearch-agent' object='conversation.entry' type='agent.handoff' created_at=datetime.datetime(2025, 4, 10, 17, 16, 18, 952817, tzinfo=TzInfo(UTC)) id='handoff_067f7fce2f3f7423800094104f3e3589'

## Event type: tool.execution

name='web_search' object='conversation.entry' type='tool.execution' created_at=datetime.datetime(2025, 4, 10, 17, 16, 23, 12996, tzinfo=TzInfo(UTC)) id='tool_exec_067f7fce7035747e800085153507b345'

## Event type: message.output

content=[TextChunk(text='The current US bank interest rate is 4.50 percent', type='text'), ToolReferenceChunk(tool='web_search', title='United States Fed Funds Interest Rate', type='tool_reference', url='https://tradingeconomics.com/united-states/interest-rate'), TextChunk(text='.\n\nI will now handoff the conversation to the calculator agent to calculate the compounded effect if investing for the next 10 years.', type='text')] object='conversation.entry' type='message.output' created_at=datetime.datetime(2025, 4, 10, 17, 16, 23, 14612, tzinfo=TzInfo(UTC)) id='msg_067f7fce703b7e01800045b2309a0750' agent_id='ag_067f7fce04517b60800013b213ff2acb' model='mistral-medium-2505' role='assistant'

## Event type: agent.handoff

agent_id='ag_067f7fce017f71a580001bf69f2cc11e' agent_name='calculator-agent' object='conversation.entry' type='agent.handoff' created_at=datetime.datetime(2025, 4, 10, 17, 16, 23, 14726, tzinfo=TzInfo(UTC)) id='handoff_067f7fce703c753680006aedb42ba7b7'

## Event type: message.output

content=' {"result": "The future value of the investment after 10 years is $1,540.10.", "reasoning": "To calculate the compounded effect of investing at the current US bank interest rate of 4.50% for the next 10 years, we use the formula for compound interest: A = P(1 + r/n)^(nt), where A is the amount of money accumulated after n years, including interest. P is the principal amount (the initial amount of money). r is the annual interest rate (decimal). n is the number of times that interest is compounded per year. t is the time the money is invested for, in years. Assuming an initial investment (P) of $1,000, an annual interest rate (r) of 4.50% (or 0.045 as a decimal), compounded annually (n = 1), over 10 years (t = 10): A = 1000(1 + 0.045/1)^(1*10) = 1000(1 + 0.045)^10 = 1000(1.045)^10 ≈ 1540.10. Therefore, the future value of the investment after 10 years is approximately $1,540.10."}' object='conversation.entry' type='message.output' created_at=datetime.datetime(2025, 4, 10, 17, 16, 30, 145207, tzinfo=TzInfo(UTC)) id='msg_067f7fcee2527cf08000744d983639dc' agent_id='ag_067f7fce017f71a580001bf69f2cc11e' model='mistral-medium-2505' role='assistant'

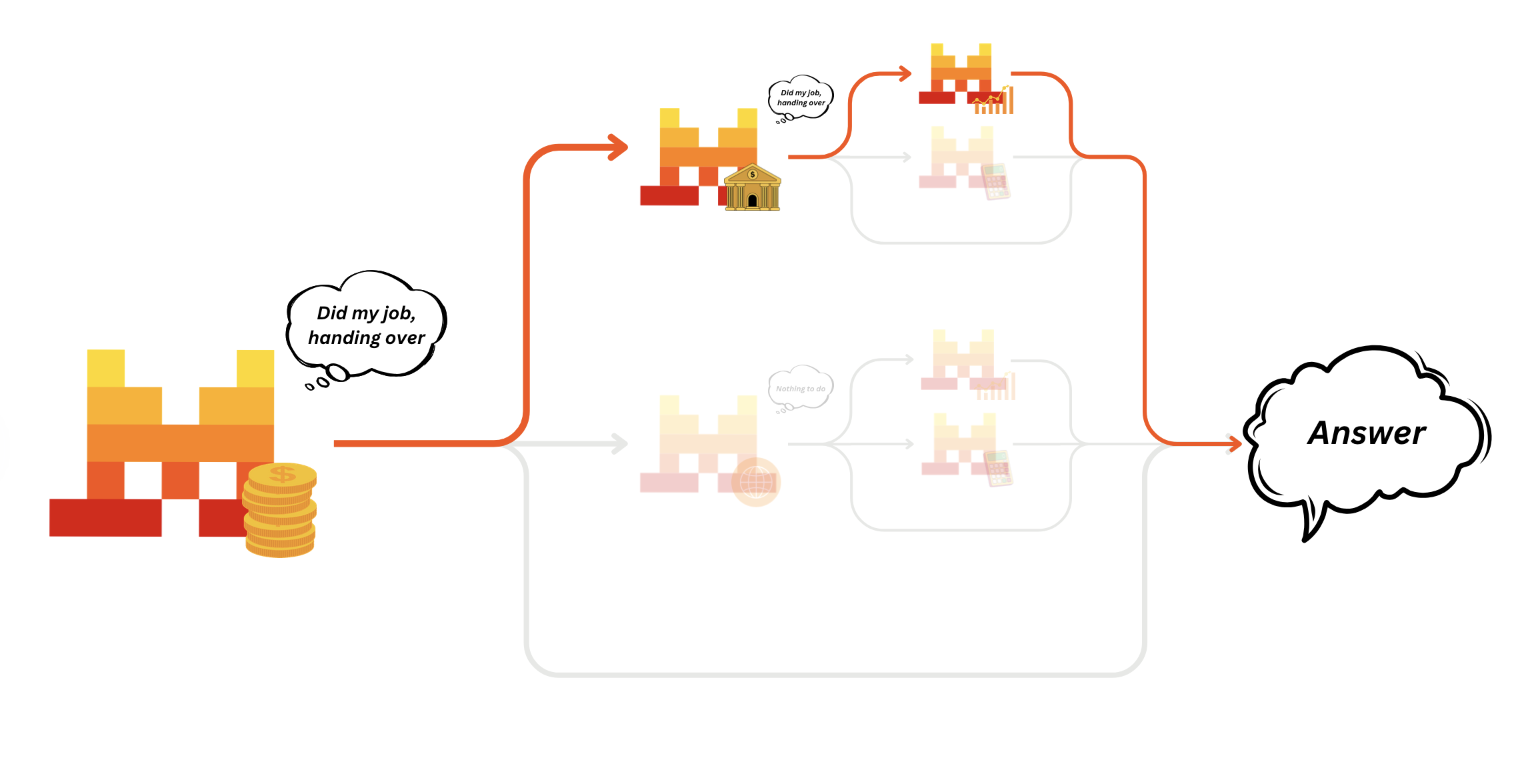

Example B

"Given the interest rate of the European Central Bank as of jan 2025, plot a graph of the compounded interest rate over the next 10 years"

The second example asks for the European central bank interest rate and to plot a graph of the compounded interest. Now we require a local function call since the ecb-interest-rate-agent will surelly be required.

python
typescript
curl

from mistralai import FunctionResultEntry

response = client.beta.conversations.start(
    agent_id=finance_agent.id,
    inputs="Given the interest rate of the European Central Bank as of jan 2025, plot a graph of the compounded interest rate over the next 10 years"
)
if response.outputs[-1].type == "function.call" and response.outputs[-1].name == "get_european_central_bank_interest_rate":

    # Add a dummy result for the function call
    user_entry = FunctionResultEntry(
        tool_call_id=response.outputs[-1].tool_call_id,
        result="2.5%",
    )
    response = client.beta.conversations.append(
        conversation_id=response.conversation_id,
        inputs=[user_entry]
    )

Parsed Output

Conversation started: conv_067f7e71523d7be3800005c4ac560a7b

## Event type: agent.handoff

agent_id='ag_067f7e714f6e751480002beb3bfe0779' agent_name='ecb-interest-rate-agent' object='conversation.entry' type='agent.handoff' created_at=datetime.datetime(2025, 4, 10, 15, 43, 18, 590169, tzinfo=TzInfo(UTC)) id='handoff_067f7e71697176098000aa403030a74e'

## Event type: function.call

tool_call_id='NqCFiwvSV' name='get_european_central_bank_interest_rate' arguments='{"date": "2025-01-01"}' object='conversation.entry' type='function.call' created_at=datetime.datetime(2025, 4, 10, 15, 43, 20, 173505, tzinfo=TzInfo(UTC)) id='fc_067f7e7182c67b9c80006f27131026a8'

## User added event function.result:

tool_call_id='NqCFiwvSV' result='2.5%' object='conversation.entry' type='function.result' created_at=None id=None

## Event type: agent.handoff:

agent_id='ag_067f7e7147e077a280005b4ae524d317' agent_name='graph-drawing-agent' object='conversation.entry' type='agent.handoff' created_at=datetime.datetime(2025, 4, 10, 15, 43, 26, 261436, tzinfo=TzInfo(UTC)) id='handoff_067f7e71e42e7e2080009fc4fd68164a'

## Event type: message.output:

content="To plot the graph of the compounded interest rate over the next 10 years, we can use the formula for compound interest:\n\n\\[ A = P \\left(1 + \\frac{r}{n}\\right)^{nt} \\]\n\nwhere:\n- \\( A \\) is the amount of money accumulated after n years, including interest.\n- \\( P \\) is the principal amount (the initial amount of money).\n- \\( r \\) is the annual interest rate (decimal).\n- \\( n \\) is the number of times that interest is compounded per year.\n- \\( t \\) is the time the money is invested for, in years.\n\nGiven:\n- The annual interest rate \\( r = 2.5\\% = 0.025 \\).\n- Assuming the interest is compounded annually (\\( n = 1 \\)).\n- We will calculate the compounded amount for each year over the next 10 years.\n\nLet's assume the principal amount \\( P = 1000 \\) (you can choose any amount as it will not affect the rate plot).\n\nWe will calculate the compounded amount for each year and plot it." object='conversation.entry' type='message.output' created_at=datetime.datetime(2025, 4, 10, 15, 43, 39, 385339, tzinfo=TzInfo(UTC)) id='msg_067f7e72b62a768f800022b2504adfc9' agent_id='ag_067f7e7147e077a280005b4ae524d317' model='mistral-medium-2505' role='assistant'

## Event type: tool.execution:

name='code_interpreter' object='conversation.entry' type='tool.execution' created_at=datetime.datetime(2025, 4, 10, 15, 43, 39, 385463, tzinfo=TzInfo(UTC)) id='tool_exec_067f7e72b62a7e3a800072733a6a57f2'

## Event type: message.output:

content=[ToolFileChunk(tool='code_interpreter', file_id='40420c94-5f99-477f-8891-943f0defbe3b', type='tool_file', file_name='plot_0.png', file_type='png'), TextChunk(text='![Image](__emitted_0.png)\n\nThe graph shows the compounded interest over 10 years with an annual interest rate of 2.5%. The principal amount is set to $1000, and the interest is compounded once per year. The y-axis represents the amount of money, and the x-axis represents the number of years.', type='text')] object='conversation.entry' type='message.output' created_at=datetime.datetime(2025, 4, 10, 15, 43, 39, 898738, tzinfo=TzInfo(UTC)) id='msg_067f7e72be6173f48000e85e9976305a' agent_id='ag_067f7e7147e077a280005b4ae524d317' model='mistral-medium-2505' role='assistant'

A full code snippet to download all generated images and plots from the response could look like so:

from mistralai.models import ToolFileChunk

for i, chunk in enumerate(response.outputs[-1].content):
    # Check if chunk corresponds to a ToolFileChunk
    if isinstance(chunk, ToolFileChunk):

      # Download using the ToolFileChunk ID
      file_bytes = client.files.download(file_id=chunk.file_id).read()

      # Save the file locally
      with open(f"plot_generated_{i}.png", "wb") as file:
          file.write(file_bytes)

curl --location "https://api.mistral.ai/v1/files/<file_id>/content" \
     --header 'Accept: application/octet-stream' \
     --header 'Accept-Encoding: gzip, deflate, zstd' \
     --header "Authorization: Bearer $MISTRAL_API_KEY"
